Linear robots have several linear axes combined in order to implement a multidimensional movement. igus supplies flat, linear and room linear robots for a multitude of different tasks. igus linear robots include harnessed drylin linear modules/axes with NEMA stepper motors as well as all the components needed to build your own robot. Application examples for room linear robots: Measurement and testing, handling and assembly technology, identification in microelectronics and medical technology, tasks in the handling of small parts and simple handling tasks.

The weight of an end effector will decrease the available payload of your robot.

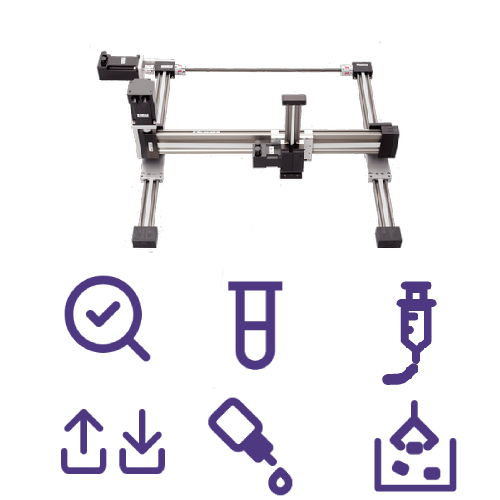

Room Linear Robot - Stepper Motors with Encoder, Working Space 400x400x150 mm

机器人

CAD file

Technical drawing

Technical documentation

User manual dryve D1

Declaration of incorporation

供应商链接

6X7SjTru7tMNITalwPhL33

根据您的需求定制线性机器人 只需输入所需的尺寸即可。 然后，您可以下载 CAD 文件，并通过电子邮件收到摘要。

满足您的需求

门户配置器

立即免费下载该软件。 这样，您就可以在购买组件之前熟悉用户界面和功能。 通过数字孪生器，您可以全面了解机器人的各种可能性。 (系统要求Windows 10 电脑、USB 2.0 免费端口、以太网端口、500 MB 可用存储空间）

免费下载

下载软件并在电脑上测试

龙门式机器人尤其适用于各种领域的拾取& 放置应用。 例如，在实验室、制造业、粘合剂应用或垂直农业中。 它们可与各种摄像系统、机械手和附件兼容，因此也可用于垃圾拣选应用。

典型应用领域

您可以通过 Windows 10 电脑或选配的触摸屏手持设备控制机器人。 在电脑上，可通过图形用户界面对机器人进行编程。 使用手持设备，您可以用操纵杆控制机器人，并通过触摸屏启动程序。 此外，您还可以将游戏手柄连接到 Windows PC，以替代掌上电脑进行控制。 有了这款手持设备，机器人在通过 Windows PC 进行编程后，就可以在没有电脑的情况下自主运行。

可选配带触摸屏的手持设备
