Fairino FR3 | 6DOF | 622mm | 3kg
Variants: FR3- IP54 Standard
Precision Cobot for Flexible Industrial Automation

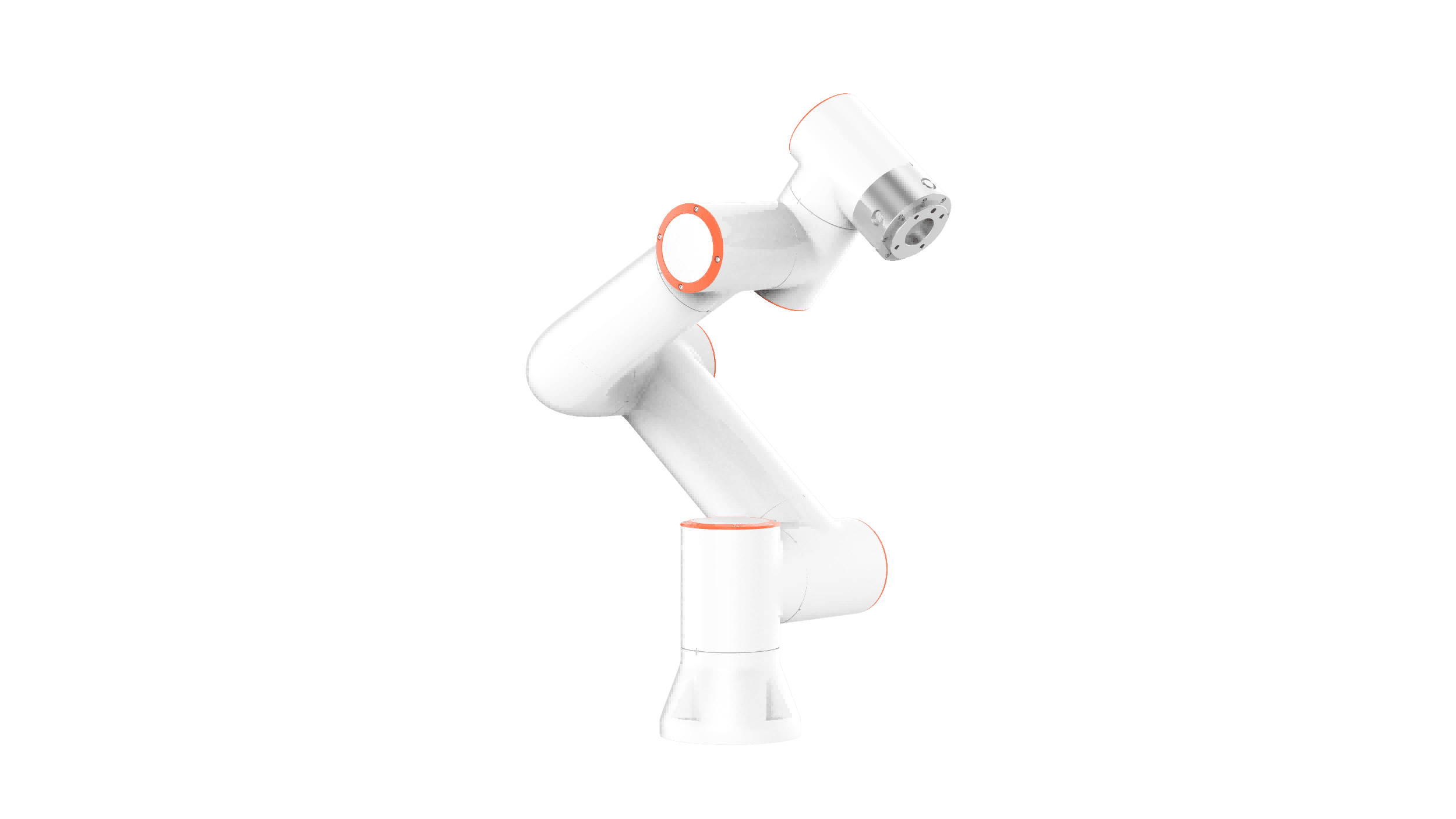

The Fairino FR3 is a 6-axis collaborative robot with a payload of 3 kg and a reach of 622 mm. With a repeatability of ±0.02 mm and a compact, lightweight design (approx. 15 kg), it is ideal for precise robotics in industrial automation.Optionally also available as explosion-proof version.
It supports TCP/IP, Modbus TCP/RTU, and optional protocols like Profinet, EtherCAT, and Ethernet/IP. Programming is possible via C#, C++, Python, ROS/ROS2. The robot is controlled via a 10.1" teach pendant or web app, and features EtherCAT architecture for real-time performance.

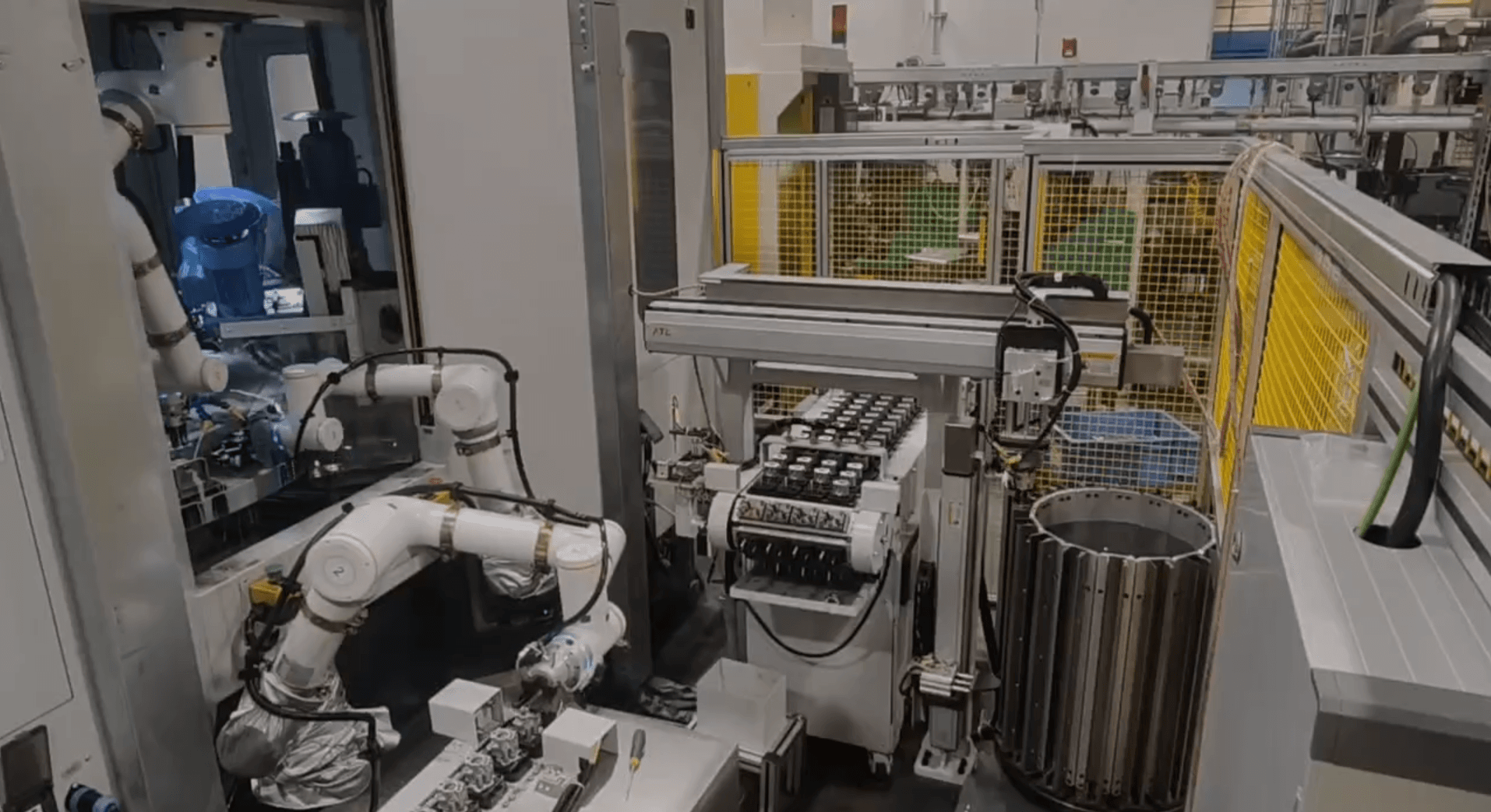

Typical applications include pick & place, quality inspection, gluing, and assembly in industries like electronics, semiconductors, and new retail. The FR3 is perfect for integrators and manufacturers seeking a reliable, high-performance robotic arm.
Highlights
Scalable FR Series for Payload up to 30 kg
The Fairino FR3 is part of the scalable FR series, covering payloads from 3 kg to 30 kg. This modular series allows companies to standardize automation across different applications while staying flexible. Variants such as IP54 or IP65 enable deployment in both clean and harsher environments. Additional versions like welding-focused models expand the range further, making the FR portfolio suitable from electronics to heavy-duty automation. This ensures long-term investment security and easy system expansion.
User-friendly programming & control

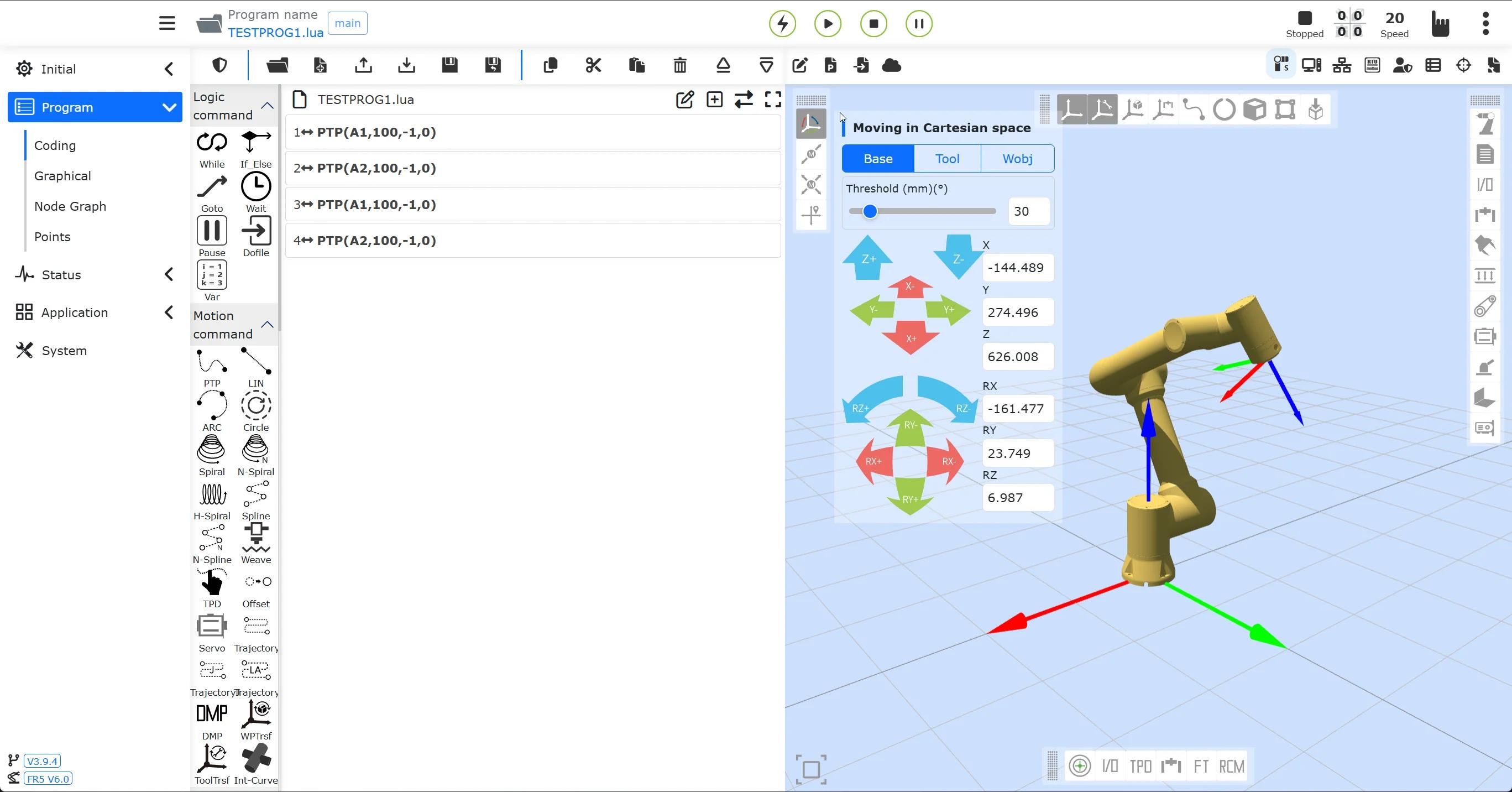

The FR3 focuses on rapid deployment with minimal training effort. Users can create robot programs via an intuitive web interface using drag-and-drop logic, without coding skills. At the same time, powerful SDKs enable integration into advanced automation environments. This dual approach supports both beginners and experienced integrators, reducing setup time and enabling fast ROI in production. The Fairino Profinet & EtherNet/IP communication card is designed for easy and reliable integration of Fairino robots into PLC‑controlled automation systems. More information
Working efficiently with a teach pendant
The teach pendant provides direct control over robot movements, program creation and system monitoring. It allows real-time visualization of robot positions, jog control of individual axes and quick access to I/O states. Combined with a browser-based interface, operators can supervise and adjust processes easily, improving usability on the shop floor and simplifying troubleshooting. More information
Typical SME automation applications

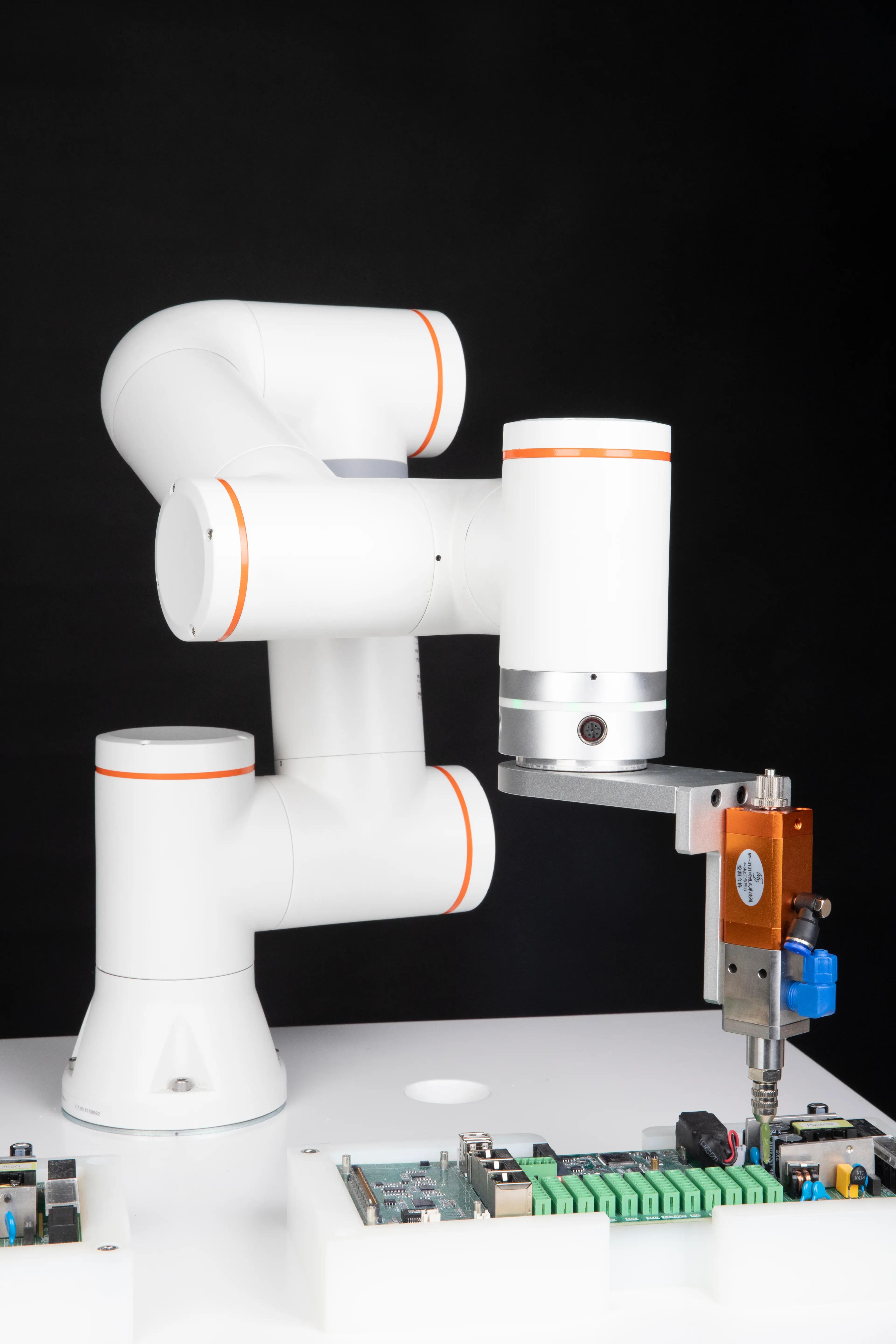

The FR3 is designed for flexible use in small and medium-sized production environments. It is ideal for repetitive handling, small-part assembly, quality inspection or dispensing processes. Its compact footprint enables integration on workbenches or mobile systems, making it suitable for electronics, laboratory automation and high-mix, low-volume manufacturing scenarios.
Force torque sensor integration brings benefits
An optional force torque sensor can be directly mounted on the robot flange and integrated via plug-and-play into the controller. It provides real-time force feedback for precise interaction, enabling applications such as press-fitting, polishing or sensitive handling. This simplifies programming of contact-based tasks and increases process quality through consistent force control. More information
